Ciena’s 8114 Coherent Aggregation Router is purpose-built for 1/10/25/100GbE services and 100/200/400 Gb/s transport. With dense 1/10/25GbE to 400GbE aggregation, including the option of 100, 200, and 400 Gb/s WaveLogic™ 5 Nano (WL5n), the 8114 addresses the increasing need for high-capacity routing and switching applications at the metro edge.

Features

No. 1

Temperature-hardened (-40°C to +65°C) for temperature-challenged or space-constrained locations

No. 2

Two flexible 800 Gb/s slots provide maximum port speeds and capacities at 100G, 200G, and 400G

No. 3

48 x 1/10/25GbE and 6 x 100GbE fixed ports

No. 4

IP routing, SR-MPLS, Carrier Ethernet, and SRv6 ready

No. 5

Hardware-assisted routing and switching OAM scaled to deliver 100GbE services with guaranteed SLA differentiation

No. 6

SZTP for rapid, secure, and errorfree turn-up of services

8114 Visio stencil

Download stencil

Specs

  • +Interfaces
    • Fixed Ethernet Ports
      • 48 x 1/10/25G SFP28+
      • 6 x 1OO GbE QSFP28 ports
      • 2 x 800 Gb/s Module Slots:

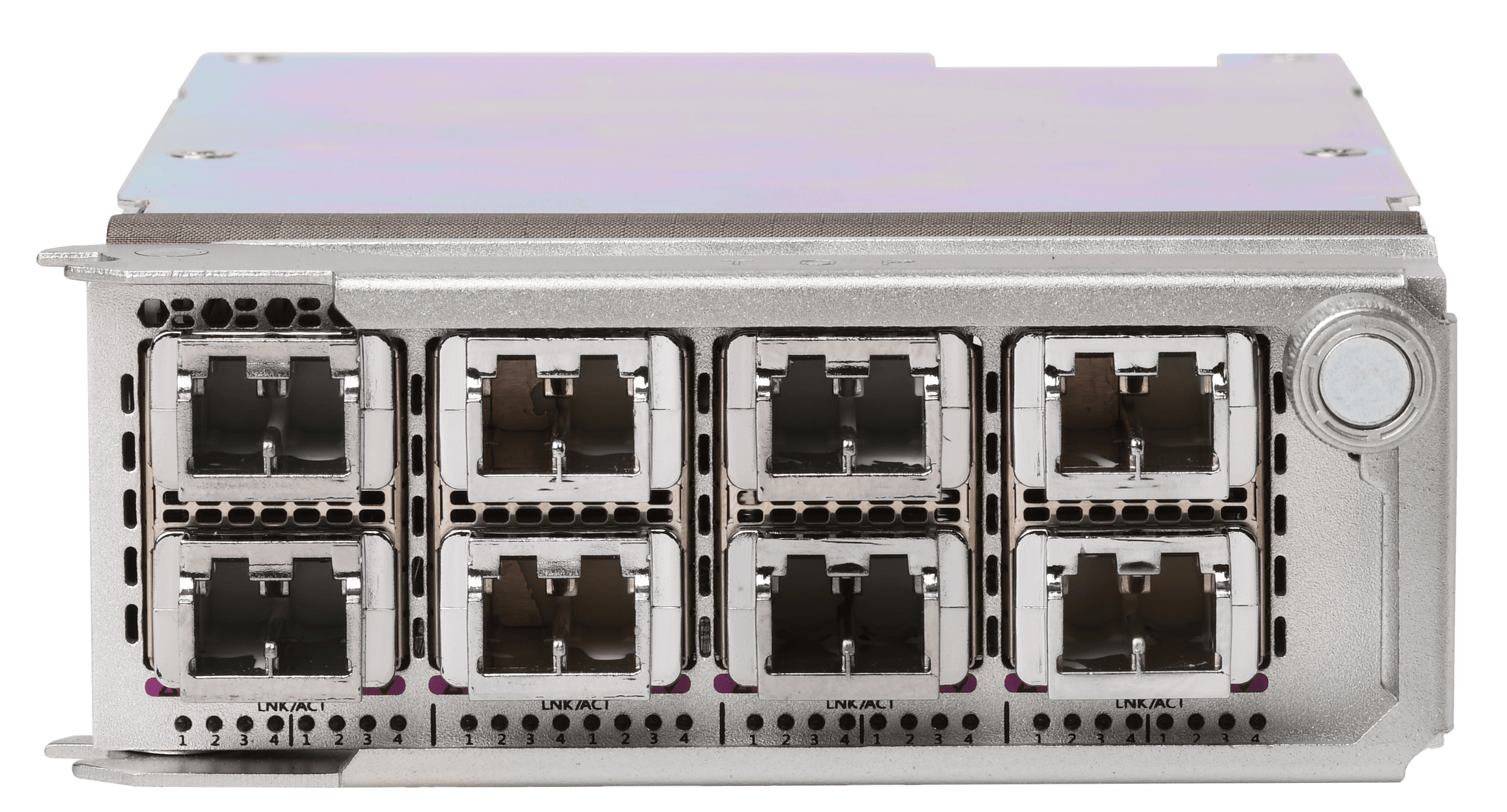

        • 8 x 100 GbE QSFP28
        • 2 x 100/200/400Gb/s QSFP-DD
        • 2 x 100/200/400Gb/s CFP2-DCO
  • + Other
    • 1 x USB-C Off-switch memory
    • 1 x USB-C Console
    • 1 x RJ45 Time-of-Day (ToD + 1PPS in/out)
    • 1 x SMB Phase input (1 pps or 10MHz in/out)
    • 1 x SMB GNSS antenna
    • 1 x RJ45 Management (MGMT)
  • +Ethernet
    • IEEE 802.1D MAC Bridges
    • IEEE 802.1p Class of Service (CoS) prioritization
    • IEEE 802.1Q VLANs
    • IEEE 802.1ad Provider Bridging (Q-in-Q) VLAN full S-VLAN range
    • VLAN tunneling (Q-in-Q) for Transparent LAN Services (TLS)
    • Layer 2 Control Frame Tunneling
    • IEEE 802.1ax Link Aggregation (LAG): Active/Active; Active/ Standby
    • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
    • Jumbo frames up to 9216 bytes
    • IEEE 802.3-2018 IEEE Standard for Ethernet and supporting following rates
      • IEEE 802.3z-1998 Gigabit Ethernet
      • IEEE 802.3ab-1999 1000Base-T via copper SFP
      • IEEE 802.3ae-2002 10Gb/s
      • IEEE 802.3ba-2010 100Gb/s
      • IEEE 802.3by-2016 25Gb/s
      • IEEE 802.3bs-2017 200Gb/s
  • + Carrier Ethernet OAM
    • EVC Ping (IPv4)
    • IEEE 802.1ab-2006 Link Layer Discovery Protocol (LLDP)
    • IEEE 802.1ag-2007 Connectivity Fault Management (CFM)
    • IEEE 802.3ah-2004 EFM Link-fault OAM
    • ITU-T Y.1564 Ethernet Service Activation Test Methodology
    • ITU-T Y.1731 Performance Monitoring
    • RFC 2544 Benchmarking Methodology for Network Interconnect Devices Generation and Reflection at 100GbE
  • + Synchronization
    • External Timing Interfaces
    • ITU-T G.703 Frequency in or out (10MHz)
    • ITU-T G.703 1pps and ToD in or out
    • Integrated GNSS receiver
    • ITU-T G.8262/G.8264 EEC option1 and option2
    • ITU-T G.8275.1 full timing support T-BC, T-GM, and T-TSC
    • G.8273.2 clock, Class C
    • G.8275.2 T-BC, T-GM, and T-TSC
    • Stratum 3E oscillator
  • +Networking Protocols
    • ISO10598 IS-IS intra-domain routing protocol
    • IS-IS Multi-instance
    • RFC1195 Use of OSI IS-IS for Routing in TCP/ IP and Dual Environments
    • RFC1997 BGP Communities Attribute
    • RFC2328 OSPF Version 2
    • OSPF Segment Routing extension
    • OSPF TI-LFA Topology Independent Fast Reroute using Segment Routing
    • RFC2865 Remote Authentication Dial in User Service (RADIUS)
    • RFC3031 Multiprotocol Label Switching Architecture
    • RFC3032 MPLS label stack encoding
    • RFC3107 Carry Label Information in BGP-4
    • RFC4115 Differentiated Service Two-Rate, Three-Color Marker with Efficient Handling of in-Profile Traffic
    • RFC4271 Border Gateway Protocol 4 (BGP-4)
    • RFC4360 BGP Extended Communities Attribute
    • RFC4364 BGP/MPLS IP Virtual Private Networks (VPNs)
    • BGP Prefix Independent Convergence
    • BGP GR helper
    • RFC4448 Encapsulation Methods for Transport of Ethernet over MPLS Networks (PW over MPLS)
    • RFC4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (iBGP)
    • RFC 4577 OSPF as the Provider/Customer Edge Protocol for BGP/MPLS IP Virtual Private Networks
    • RFC4632 Classless Inter-domain Routing (CIDR): The Internet Address Assignment and Aggregation Plan
    • RFC4664 Framework for L2 Virtual Private Networks (VPLS/VPWS)
    • RFC4665 Service Requirement for Layer 2 Provider-Provisioned VPNs
    • RFC4760 Multiprotocol Extensions for BGP-4
    • RFC4762 Virtual Private LAN Service (VPLS) Using Label Distribution Protocol (LDP) Signaling (HVPLS)
    • RFC5036 LDP Specification
    • RFC5037 Experience with the Label Distribution Protocol
    • RFC5301 Dynamic Hostname Exchange Mechanism for IS-IS
    • RFC5302 Domain-Wide Prefix Distribution with Two-Level IS-IS
    • RFC5303 Three-Way Handshake for IS-IS Point-to-Point Adjacencies
    • RFC5309 Point-to-Point Operation over LAN in Link State Routing Protocols
    • RFC5396 Textual Representation of Autonomous System (AS) Numbers
    • RFC5398 Autonomous System (AS) Number Reservation for Documentation Use
    • RFC5492 Capabilities Advertise with BGP-4
    • RFC5561 LDP Capabilities
    • RFC5654 Requirements of an MPLS Transport Profile (MPLS-TP)
    • RFC5668 4-Octet AS Specific BGP Extended Community
    • RFC5880 Bidirectional Forwarding Detection (BFD)
    • RFC5881 Bidirectional Forwarding Detection (BFD) for IPv4 and IPv6 (Single Hop)
    • RFC 5883 Bidirectional Forwarding Detection (BFD) for Multihop Paths
    • RFC5884 Bidirectional Forwarding Detection (BFD) for MPLS Label Switched Paths (LSPs)
    • RFC6073 Segmented Pseudowire (static PW to static PW stitching)
    • RFC6310 Pseudowire (PW) Operations, Administration, and Maintenance (OAM) Message Mapping
    • RFC6391 Flow-Aware Transport of Pseudowires over an MPLS Packet Switched Network
    • RFC6478 Pseudowire Status for Static Pseudowires
    • RFC6793 BGP Support for Four-Octet Autonomous System (AS) Number Space
    • RFC7023 MPLS and Ethernet Operations, Administration, and Maintenance (OAM) Interworking
    • RFC7432 EVPN VPWS
    • RFC7769 Media Access Control (MAC) Address Withdrawal over Static Pseudowire
    • RFC7911 Advertisement of Multiple Paths in BGP
    • RFC8029: Detecting Multiprotocol Label Switched (MPLS) Data-Plane Failures
    • RFC8214 Virtual Private Wire Service Support in Ethernet VPN
    • RFC8469 Recommendation to Use the Ethernet Control Word
    • EVPN FXC draft-ietf-bess-evpn-vpwsfxc-03.txt
    • SR-MPLS TI-LFA Topology Independent Fast Reroute using Segment Routing draft-ietfrtgwg-segment-routing-ti-lfa-03
  • + Network Management
    • Alarm Management and Monitoring Configuration
    • Event and Alarm Notification/Generation Comprehensive Management
    • Comprehensive Management
      • Via CLI Management
      • Via Netconf/YANG Models
    • gRPC-based streaming telemetry
    • IPv4 and IPv6 Management Support
    • IPv4 Management ACL (in-band)
    • IPv6 Management ACL (in-band)
    • RADIUS, AAA
    • RFC 2131 DHCP Client
    • RFC 3046 DHCP Relay
    • RFC 3315 DHCPv6 Client
    • RFC 6614 RadSec Client
    • RFC 5425 Syslog over TLS
    • SNMPv2 Trap
    • SNMPv2 GET
    • RFC 3046 DHCP Relay
    • RFC 5905 NTP Client
    • Secure File Transfer Protocol (SFTP)
    • Secure Shell (SSHv2)
    • RFC 8572 Secure Zero-Touch Provisioning (SZTP)
    • Software upgrade via FTP, SFTP
    • Syslog Accounting
    • TACACS + AAA
    • Web GUI
  • + Physical Characteristics
    • Dimensions
      • 17.36"(W) x 11.14"(D) x 3.46"(H)
      • 441mm (W) x 283mm (D) x 88mm (H)
    • Weight
      • AC variant: 22.1 lbs; 10.02 kg
      • DC variant: 21.8 lbs; 9.89 kg
    • Power
      • AC input: 100Vac, 240 Vac (nominal)
      • DC input: -48 Vdc (nominal)
      • ETSI EN 300 132-2 V1.1.1 (2002-1) AC
      • ETSI EN 300 132-3 V2.1.1 (2003-01) DC
  • + Standards Compliance
    • Emissions and Immunity (EMC)
      • CISPR 24
      • CISPR 32 Class A
      • CISPR 35
      • ETSI EN 300 386
      • ETSI EN 55032
      • FCC Part 15 Subpart B, Class A
      • GR-1089 Issue 6
      • Industry Canada ICES-003 Class A
      • VCCI Class A
    • NEBS (Network Equipment-Building System)
      • LEVEL 3 compliant
      • GR-63 Issue 5
    • Safety
      • ANSI/UL 60950-1 2nd edition / ETSI EN 60950-1, AI:2011 and A2:2014
      • CAN/CSA-C22.2 No. 60950-2, Amd 1:2011, Amd 2:2014
      • ETSI EN 62368-1:2014+A11:2017 and CSA/UL 62368-1:2014
      • IEC 60825-1
      • IEC 60825-2
    • Environmental
      • ETSI EN 300-019-2-1
      • ETSI EN 300-019-2-2
      • ETIS EN 300-119-3
      • GR-3108 Class 2 / ETSI EN 300-019-3-3 Class 3.2
      • NEBS Level 3 CO (GR-63 Core)
      • RoHS2 Directive (2011/65/EU)
      • WEEE 2002/96/EU
    • Operating Temperature
      • -40°F to +149°F (-40°C to +65°C)
    • Storage Temperature
      • -40°F to +158°F (-40°C to +70°C)
    • Humidity
      • Non-condensing 5% to 90%
    • Altitude
      • 1,800m (operating temperature range)
      • 4000m (12,000 ft) at reduced temperature (40°C)
    • Service Security
      • Broadcast Containment Egress Port Restriction
      • Hardware-based DOS Attack Prevention Layer 2, 3, 4 Protocol Filtering
      • User Access Rights Local user authorization
  • +Ordering Information
    • Ordering Information
      Part NumberDescription
      170-8114-900 8114, (6)100G QSFP28, ,(48)25G/10G/1G SFP28, (2)SLOTS 800G MOD,EXT. TEMP,(2)SLOTS AC OR DC PLUG PWR SUP
      170-0339-900 8110, MODULE, (2)400G/200G/100G QSFP-DD
      170-0340-900 8110, MODULE, (8)100G/40G QSFP28
      170-0389-900 8110, MODULE, (2)400G CFP2-DCO
      170-0336-900 8110, DC PLUGGABLE POWER SUPPLY, -48V
      170-0337-900 8110, AC PLUGGABLE POWER SUPPLY, WIDE RANGE 120/240V
      Required OS Base System Perpetual Software Licenses
      S75-LIC-8114EO-P SAOS BASE OS, ETHERNET & OAM SOFTWARE LICENSE FOR 8114, PERPETUAL
      Optional OS Application
      S75-LIC-8114MPLS-P SAOS ROUTING/MPLS SOFTWARE LICENSE FOR 8114, PERPETUAL
      S75-LIC-8114SEC-P SAOS SECURITY SOFTWARE LICENSE FOR 8114, PERPETUAL
      S75-LIC-8114SYNC-P SAOS SYNCHRONIZATION SOFTWARE LICENSE FOR 8114, PERPETUAL
      S75-LIC-8114EVPN-P SAOS EVPN SOFTWARE LICENSE FOR 8114, PERPETUAL
