WaveLogic 5 Nano
Smaller footprint. More applications.
Trusted WaveLogic™ technology. Now in pluggable form.
Reduced power consumption. More high-capacity connectivity.
Whether you need to upgrade to higher data rates at the edge of your network, modernize your existing optical systems, efficiently increase bandwidth between data centers, or migrate your metro-regional network to a converged IP/Optical infrastructure, you can benefit from the modularity, versatility, and scalability of WaveLogic 5 Nano pluggable coherent optics. Learn more about how you can sustainably evolve your edge, DCI, and metro-regional networks.
WaveLogic 5 Nano: Addressing sustainable network evolution with use-case optimized pluggable optics
Evolve to a fully disaggregated network architecture via a multi-vendor pluggable optics ecosystem
Open networks are underpinned by optical interconnect standards where Ciena is an active leader in driving global efforts. With WL5n Standard QSFP-DD and CFP2-DCO transceivers, you can upgrade your network while relying on a full range of interoperable specifications.
Optimize your network efficiency and performance for metro-regional ROADM applications
Looking to reduce energy consumption and transport costs in your optical network? Are you evaluating converging IP and Optical layers? WL5n Enhanced QSFP-DD and Universal QSFP-DD and CFP2-DCO transceivers deliver maximum performance and flexibility all at lower power and cost per bit than previous 100G-400G coherent technologies. You can choose from the widest pluggable feature set in the industry, including: packet and OTN transport, maximum reach with pluggable optics, support for high span-count ROADM architectures, compatibility with any photonic line system, and the ability to deploy in brownfield environments.
Ciena offers all consumption models for pluggable coherent optics. WL5n is supported across a wide range of Ciena transport and routing and switching platforms as well as select third-party host platforms.
WaveLogic™ 5 Nano benefits
WaveLogic 5 Nano (WL5n) 100G-400G coherent pluggables provide exactly what you need, where you need it:
Looking for a cost-effective way to achieve 400Gb/s capacity over short links between datacenters?WL5n 400ZR plugs offer lowest-power, highest density single-span datacenter interconnect.
Download now
WL5n 400ZR plugs offer lowest-power, highest density single-span datacenter interconnect.
Want to increase power/space efficiencies of your optical network?WL5n Standard and Enhanced plugs support transmission over 50GHz as well as flexible grid channel spacing so you can upgrade both brownfield and greenfield networks with leading technology and reduced energy consumption.
Download now
WL5n Standard and Enhanced plugs support transmission over 50GHz as well as flexible grid channel spacing so you can upgrade both brownfield and greenfield networks with leading technology and reduced energy consumption.
Looking to migrate to a converged IP/Optical architecture?WL5n Standard and Enhanced plugs in router-optimized form factors support seamless photonic layer integration.
Download now
WL5n Standard and Enhanced plugs in router-optimized form factors support seamless photonic layer integration.
Need to upgrade your exterior fiber plant connectivity?WL5n extended temperature, standards-based plugs are hardened for outdoor deployments.
Download now
WL5n extended temperature, standards-based plugs are hardened for outdoor deployments.
Ciena's WL5n interoperability demonstrations
OFC 2024Ciena’s WL5n 400G QSFP-DD and CFP2-DCO transceivers demonstrate 400ZR, 400ZR+ and Open ROADM/ITU-T line interop, as well as CMIS interop.
View demo
Ciena’s WL5n 400G QSFP-DD and CFP2-DCO transceivers demonstrate 400ZR, 400ZR+ and Open ROADM/ITU-T line interop, as well as CMIS interop.
ECOC 2023Ciena’s WL5n 400G QSFP-DDs demonstrate 400ZR, 400ZR+ and Open ROADM/ITU-T line interop, as well as CMIS interop.
View demo
Ciena’s WL5n 400G QSFP-DDs demonstrate 400ZR, 400ZR+ and Open ROADM/ITU-T line interop, as well as CMIS interop.
OFC 2023Ciena’s WL5n 400ZR QSFP-DD demonstrates 400ZR line interop and CMIS interop.
View demo
Ciena’s WL5n 400ZR QSFP-DD demonstrates 400ZR line interop and CMIS interop.
ECOC 2022Ciena’s WL5n 400ZR QSFP-DD demonstrates 400ZR line interop and CMIS interop.
View demo
Ciena’s WL5n 400ZR QSFP-DD demonstrates 400ZR line interop and CMIS interop.
CableLabsCiena’s WL5n 200G QSFP-DD and CFP2-DCO demonstrate 200G Point-to-Point Coherent Optics (P2PCO) line interoperability.
Learn more
Ciena’s WL5n 200G QSFP-DD and CFP2-DCO demonstrate 200G Point-to-Point Coherent Optics (P2PCO) line interoperability.
WaveLogic™ 5 Extreme. Transforming networks today.
When you have high-bandwidth 100GbE and 400GbE connectivity requirements
or are looking to maximize fiber capacity and networking efficiencies.
Available products with WaveLogic 5 Nano
6500
Ciena’s 6500 family of Packet-Optical Platforms helps you continually stay ahead of unpredictable customer demands.
Learn more

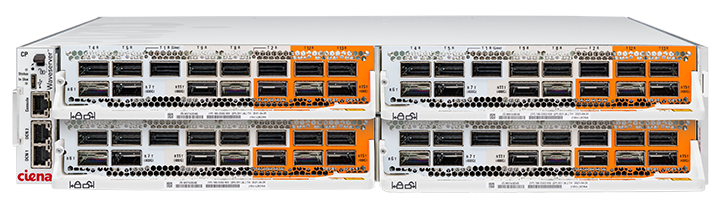

Waveserver
Ciena’s Waveserver 5 compact interconnect platform is optimized for 100GbE and 400GbE applications and provides unmatched scaling capabilities in a compact footprint.
Learn more
